Ausstellernews Fakuma 2023

Promix Solutions AG
Mixing. Foaming. Cooling.

Products >>>

Deutscher Text >>>


Promix Solutions supplies key components and process technology for MIXING. FOAMING. COOLING. in the plastics industry. Process technology and innovation are our passion. We support you in reducing your production costs, optimizing your process and solving quality concerns. As a welcome side effect, your carbon footprint will be improved.

Promix Solutions - Hauptsitz
Promix Headquarter, Technopark Winterthur, Switzerland

You can expect unique key components, outstanding process engineering solutions and a high level of expertise from us. These contribute greatly to saving raw material costs, solving quality problems, and optimizing processes. Promix Solutions was founded in 2012 as a spin-off from Sulzer Chemtech. The Swiss company has its

Headquarters and development site in Winterthur, Switzerland. Production and delivery are carried out from the manufacturing facility in Wetzlar, Germany. Additional own sales companies in Italy and USA as well as a broad network of partners and representatives allow our customers to contact us easily and efficiently.



Mixing

Solve quality concerns in injection molding or extrusion? Increase productivity of your plant? Save costs? Talk to the market leader for static mixer solutions in the plastics industry!

How does Static Mixing work
Static mixing is the mixing of liquids without moving parts. A static mixer uses tubular internals of intersecting bars to achieve the desired mixing and dispersion effect as the melt flows through the motionless mixing elements.

Promix static mixer solutions are designed to balance melt homogeneity and temperature gradients very effectively at low shear stress and minimal pressure drop. Further positive aspects are short installation length and maintenance-free operation.

For more information, click here.

Static mixer – the working principle




Foaming

Promix specializes in physical foaming in extrusion. Depending on the application, foamed polymers offer a wide range of advantages.

Promix foam extrusion uses environmentally friendly nitrogen and CO2 blowing agents to introduce a microcellular foam structure into the extruded component. The main focus is on saving raw material costs. In the case of Light Foams and Particle Foams, the focus is on functional aspects such as thermal insulation, weight savings or stiffness.

What all applications have in common is that very uniform and fine-cell foam structures have significantly better properties than inhomogeneous, coarse-cell foams. With the development of Promix Microcell Extrusion, the company has succeeded in setting new standards in the field of fine cellularity and foam homogeneity. The technology combines unique key components, novel nucleation additives and process engineering know-how.

For more information, click here.

Promix Schäumen


Cooling

Promix specializes in demanding cooling and heat exchanger tasks. These include the cooling of viscous media or media that are sensitive to degradation.

Melt cooler and heat exchanger – the challenge
Due to the increase in viscosity caused during cooling, the fluids to be cooled tend to adhere and form deposits on the cooling surfaces. This leads to long residence times and product degradation (fouling). Since the introduction of Promix P1 cooling mixer technology, these problems are a thing of the past. The cooling mixer technology, which was developed using state-of-the-art CFD methods, is now being used in more and more areas of application.

The technology, which was originally developed for plastics processing, is now also being used successfully in fiber and polymer production, chemical, pharmaceutical, and food production. In addition to cooling, the technology is also well suited for heating fluids that are residence time critical and sensitive to decomposition.

Promix Melt Coolers and Heat Exchangers improve your process
• Very high cooling capacity and precise temperature control of the melt at the outlet
• No deposits and decomposition thanks to optimum flow profile
• Narrow residence time spectrum
• Short installation length
• Low pressure drop

For more information click here.

Promix Schmelzekühler


Products

• Mixer Injection Molding >>>
• Mixer Extrusion >>>
• Foam Extrusion >>>
• CO2/N2- Gas dosing station >>>
• Melt Cooler / Heat Exchanger >>>
• Annular die >>>
• Nucleation additives >>>
• Inline Viscosity Measurement >>>


Mixer Injection Molding

Quality problems in injection molding are often solved by modifying the process parameters. Masterbatch concentration and back pressure must be increased, which makes production costs more expensive. This does not have to be the case! Mixing Nozzles from Promix ensure excellent melt homogeneity. Color streaks or irregularly distributed additives in the component are a thing of the past.

Mixing nozzles and static mixers for injection molding – Improve your process now!
Color streaks, surface defects, weak weld lines, part warpage? You can solve many of your current problems in a fast and cost-effective way without interrupting production. Explore the hidden potential for further process optimization. Reduce your masterbatch costs by up to 30% or shorten your cycle time.

The static mixer is installed directly in the nozzle of the injection molding machine. When replacing the existing nozzle with a mixing nozzle, you can rely on an experienced partner. Mixing nozzles for the most common injection molding machines are in stock with us and can be delivered within 1 to 2 weeks.

Mixing nozzles from Promix® offer numerous advantages
• 20–30% less masterbatch consumption
• Elimination of flow lines or color streaks
• Excellent distribution of additives
• Tighter tolerances
• Higher admixture of regranulate
• Shorter cycle times

For more information click here.

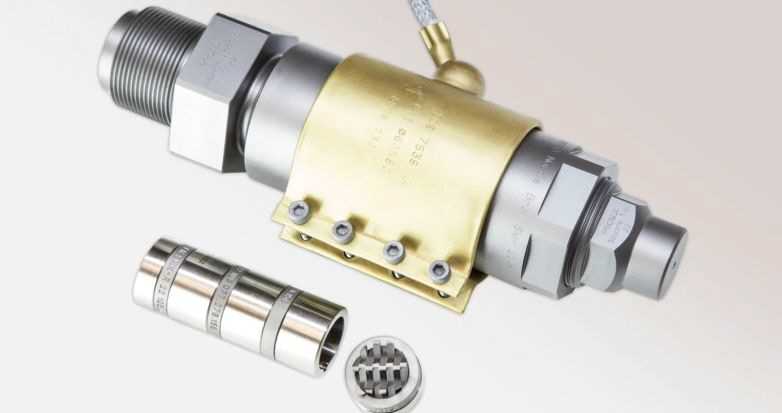

Promix Mischer Spritzguss


Mixer Extrusion

Insufficient surface quality, long cooling times, uneven thickness tolerances or other quality problems often limit maximum production output. Promix melt blenders eliminate these limitations sustainably and lead to significant cost savings.

Melt blenders for extrusion – melt homogeneity pays off!
Would you like to optimize your extrusion process? Improved melt homogeneity and a more uniform melt temperature create tighter thickness tolerances and better surface quality. And quite often, it can also increase production throughput. Promix offers you highly effective static mixers and melt blenders at low
investment costs.

They are supplied ready for installation, including heater bands and holes for pressure and temperature sensors. The melt blenders are usually installed downstream of the screen changer & gear pump, and upstream of the die. The very short installation length allows easy retrofitting in existing extrusion lines.

Promix® melt blenders offer numerous advantages
• Higher throughput
• Excellent distribution of additives
• Consistent quality and optimal melt flow into the die
• Elimination of flow lines
• Homogeneous temperature and flow velocity
• Inline viscosity measurement for real-time quality control of raw material and process conditions (add-on
  package)

For more information click here.

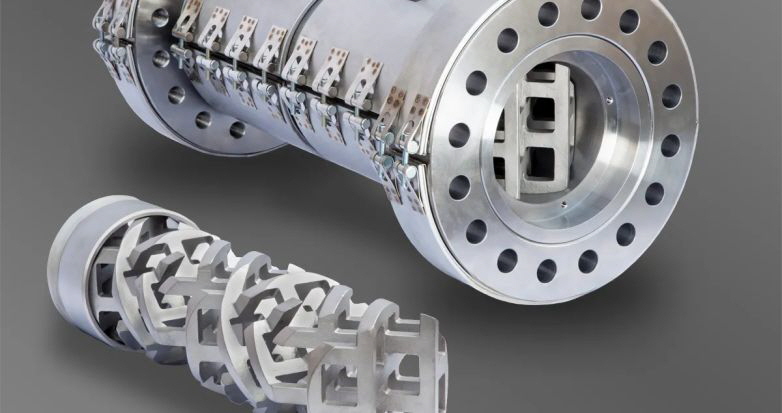

Promix Mischer Extrusion


Foam Extrusion

Microcell foam extrusion systems from Promix are used for a wide variety of applications and for almost all polymers. Thanks to the production of very homogeneous microcellular foam structures, high-quality foam products with very low densities and excellent mechanical properties can be produced.

Microcell Foam Extrusion from Promix – Outstanding physical foaming solutions
Physical foaming can significantly reduce material costs in many extrusion applications. Foam extrusion systems from Promix set standards in the production of microcellular foam products with a very homogeneous cell structure and high process consistency.

Unique key components and extensive process knowledge form the basis. The systems operate with the environmentally friendly blowing fluids CO2 and N2 and are very easy to integrate into existing or new extrusion lines. Depending on the application, density reductions of 5% to over 70% can be achieved.

Key to success
• Promix gas dosing systems for highest dosing accuracy and very safe and easy operation, specially
  designed for physical foaming.
• Highly efficient patented static and dynamic mixing systems with very short installation length
• Unique patented P1 cooling mixer technology for outstanding foaming results
• Foam-compatible die design, annular dies for light foam applications
• Inline viscosity measurement for real-time monitoring of raw material quality and process conditions
• Procell nucleation additives specifically adapted to microcellular extrusion
• Comprehensive consulting and project support
• Pilot trials and material samples in our extrusion laboratory

For more information click here.

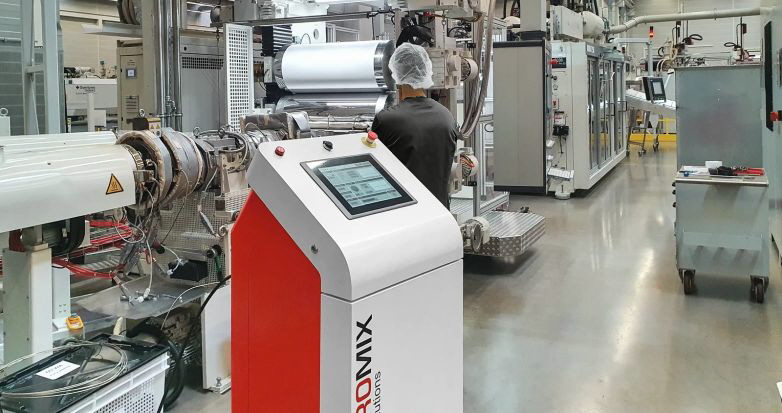

Promix Microcell Schaumextrusions-Systeme


CO2/N2- Gas dosing station

Promix gas dosing stations for physical foaming have been specially designed and developed to meet the needs of foam extrusion. Promix gas metering technology is characterized by high dosing accuracy, reliability and amazingly simple operation.

CO2 and N2 gas dosing stations for physical foaming
Promix gas dosing stations meet all the requirements of a modern gas metering system for foam extrusion. These include high-precision mass flow control, process visualization by means of trend charts, operator-definable

operating limits, data acquisition, and synchronization of the dosing rate with the extruder output. Implementation in the extruder control system via fieldbus system is also possible.

Key features Promix gas metering technology
• Mass flow from 1 g/h up to 20'000 g/h
• Dosing pressure up to 680 bar
• Convenient operation via 12.1" touch screen
• User settable limits for full process control
• Trend charts for pressure and mass flow over time
• “Flow match" function to synchronize mass flow with extruder output
• Integration of extruder control via fieldbus system possible
• Data acquisition via USB interface
• Remote maintenance capability

For more information click here.




Melt Cooler / Heat Exchanger

Promix specializes in demanding cooling and heat exchanger tasks. These include the cooling of viscous media or media that are sensitive to degradation..

Melt cooler and heat exchanger – the challenge
Due to the increase in viscosity caused during cooling, the fluids to be cooled tend to adhere and form deposits on the cooling surfaces. This leads to long residence times and product degradation (fouling). Since the introduction of Promix P1 cooling mixer technology, these problems are a thing of the past. The cooling mixer technology, which was developed using state-of-the-art CFD methods, is now being used in more and more areas of application.

The technology, which was originally developed for plastics processing, is now also being used successfully in fiber and polymer production, chemical, pharmaceutical, and food production. In addition to cooling, the technology is also well suited for heating fluids that are residence time critical and sensitive to decomposition.

Your advantages
• Very efficient cooling of polymer melts and other viscous fluids close to the solidification point
• Insensitive to deposits and "freezing
• Precise temperature control and uniform temperature distribution at the outlet
• Very robust construction insensitive to pressure loss
• Extremely gentle cooling and heating of residence time critical fluids
• Unique self-cleaning behavior, for example during color changes

For more information click here.

Promix Kühlen


Annular die

The Promix annular die for foam extrusion enables the production of high-quality foamed films made of PP, PS, PE, PET and biopolymers.

Technology Promix Annular Die
Die technology has a decisive influence on the quality of EPS (XPS), XPE, XPP, XPET foamed films. The Promix annular die technology combines 20 years of experience in foam die design and sets new standards in the production of foam films. Thanks to the special patented die design, foam density and film thickness tolerances can be further reduced.

This leads to high material and cost savings. The flex-lip concept allows very precise adjustment of the film thickness. This does not change when the die is opened and closed, which eliminates the need for time-consuming readjustment.

Your advantages
• Very uniform fine-cell foam structure
• Reduction of foam density
• Very narrow thickness tolerances
• Independent of material and operating point
• Simple, safe and reproducible die lip adjustment

For more information click here.

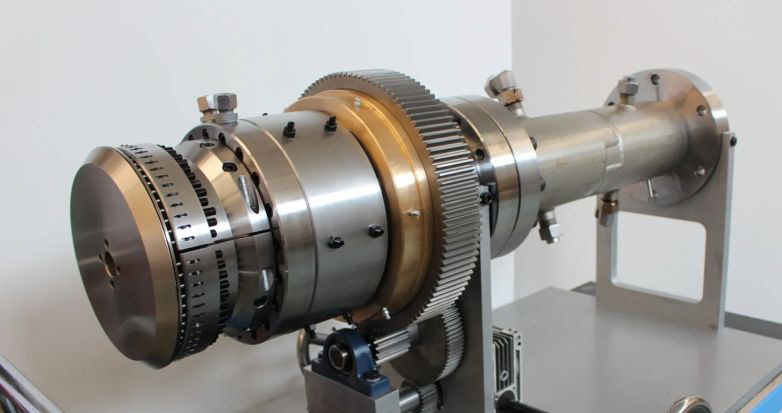

Promix Ringdüse


Nucleation additives

The Procell nucleation additives developed by Promix are specially adapted to the Microcell foam extrusion technology. They lead to microcellular foam structures, a key factor for high mechanical strength of the foamed product
.

Procell nucleation additives – a key in the production of microcellular foams
Homogeneous, very fine-cell foam structures are the key to high mechanical strength. Promix has developed specific Procell nucleation additives. These are specially adapted to the Promix Microcell foam technology and lead to microcellular foam structures. The additives can be used in foam extrusion and light foam extrusion for many polymers such as PP, PET, PE, PS, ABS, PLA and are suitable for food contact applications. Contact us for a test sample.

Advantages Procell Nucleation Additives
• Excellent, very uniform and fine-cell foams
• Easy dosage as masterbatch
• Highly effective even at very low dosing rates
• No disturbing side effects when reincorporating recycled material
• Suitable for contact with food

For more information click here.

Promix Nukleierungsadditive


Inline Viscosity Measurement

Visco-P from Promix is a true inline viscosity meter that helps you monitor your production process and save production costs.

Inline viscosity measurement – directly in the melt stream
Monitor the quality in your extrusion line, fiber production, polymer production or food and chemical production continuously in real time with the Promix Visco-P inline viscosity meter. Prevent scrap production and reduce raw material costs through active raw material management.

Promix Visco-P is a true online rheometer that helps you monitor your production process and save production costs. Ask for a test unit and see for yourself!

Advantages Promix Visco-P inline viscosity measurement
• Continuous monitoring of raw material quality and process conditions in real time
• Raw material cost reduction through active raw material management
• Precise inline viscosity measurement in the melt stream – without bypass
• Suitable for all viscous media
• Additional benefit of melt and temperature homogenization in the Promix melt blender, which also serves
  as a measuring section
• Can be integrated into any extrusion line

For more information click here.

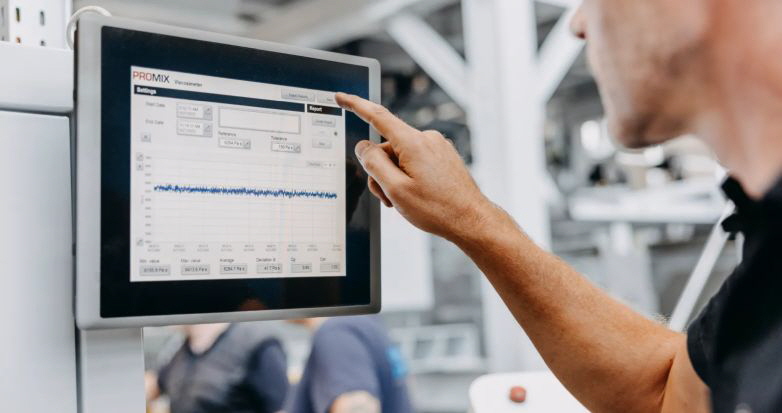

Promix Inline-Viskositätsmessung


Visit us at the Fakuma. We would be pleased to meet you on our booth:
Hall A2 – booth 2105

Promix Solutions - LogoPromix Solutions AG
Technoparkstrasse 2
CH-8406 Winterthur

Tel. +41 52 267 80 80
Fax +41 52 267 80 81

info@promix-solutions.com
www.promix-solutions.ch
